Transducer
A transducer of the Morko USP utilizes magnetostrictive materials (Fe-Co). It should be flanged and welded to the equipment to enhance tight connection and high efficiency of transmission. When it is needed to use for an equipment located at hazardous area, its explosion-proof type should be considered.
A transducer of the Morko USP utilizes magnetostrictive materials (Fe-Co). It should be flanged and welded to the equipment to enhance tight connection and high efficiency of transmission. When it is needed to use for an equipment located at hazardous area, its explosion-proof type should be considered.
General type
Explosion-proof type
General type
Explosion-proof type
What is a USP?
- USP is an Ultrasonic Scale Preventer.
- It consists of a generator (amplifier) and transducers (magnetostrictive).
- The dynamic energy of strong ultrasound wave generated by the generator is transmitted into the target object with an aid of the transducer.
- USP is an Ultrasonic Scale Preventer.
- It consists of a generator (amplifier) and transducers (magnetostrictive).
- The dynamic energy of strong ultrasound wave generated by the generator is transmitted into the target object with an aid of the transducer.
Generator
A generator normally uses the single-phase voltage of 220V and generates ultrasound wave. The USP generator is based on the pulsed wave mode, and it has a frequency
A generator normally uses the single-phase voltage of 220V and generates ultrasound wave. The USP generator is based on the pulsed wave mode, and it has a frequency

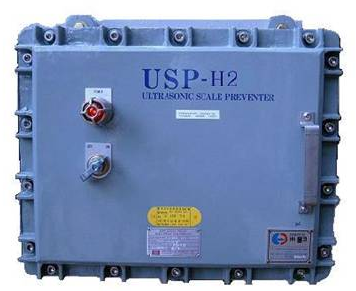

control circuit to set its resonance frequency. The frequency range of the generator can be adjusted depending upon transducers and objects. In most cases, the range falls between 10 kHz and 25 kHz approximately. Except for some parts, most parts of the generator are semi-permanent. There is an explosion-proof generator to use at hazardous areas.
N.B> The shape, color, and material of these generator cases will be changed in the future.
N.B> The shape, color, and material of these generator cases will be changed in the future.
